Nitto Kohki
Nitto Kohki HB-15B Hand Beveler Electric 115V
Nitto Kohki HB-15B Hand Beveler Electric 115V
Regular price
$2,185.00 USD
Regular price
$2,350.00 USD
Sale price
$2,185.00 USD
Unit price
/
per
Couldn't load pickup availability

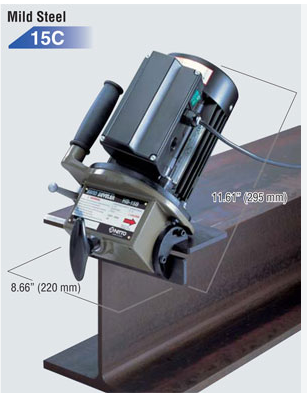

The Nitto Kohki HB-15B Electric Hand Beveler is a high performance, portable chamfering tool designed for precise edge preparation on steel plates, pipes and tubes.
Product Overview
Get flawless weld preparation and deburring with the Nitto Kohki USA Hand Beveler HB-15B. Built for heavy-duty fabrication, this electric tool handles bevel angles from 15° to 45° and achieves a bevel depth of up to 5/8” (15 mm) at a 45° angle using multiple passes. Operating at a rapid 3 to 4 feet per minute, its high-speed cutting action minimizes material hardening while leaving a fine surface finish that eliminates the need for post-sanding.
Key Features & Benefits
Weld Preparation: Ideal for precise edge beveling on plates, pipes, and tubes.
Adjustable Angles: Easily adjusts for bevel angles from 15° to 45°.
High Efficiency: Bevels approximately 3 to 4 feet per minute.
Economical Blades: Uses indexable cutting inserts with four working edges for extended tool life.
Fine Finish: Leaves a smooth surface finish, making extra sanding unnecessary.
Material Protection: High-speed cutting reduces the risk of material hardening.
Manufacturer Warranty: Backed by a one-year limited warranty.
Technical Specifications
Power Consumption: 910W @ 115V AC
No-Load Speed: 2,750 – 3,350 RPM

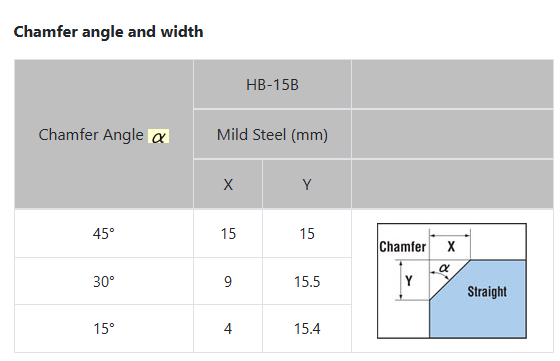

Bevel Angle Range: 15° to 45°
Maximum Bevel Depth: Up to 5/8" (15 mm) at 45°
Weight: Approx. 33 lbs (15 kg)
Application: Suitable for mild steel plates, pipes, and cast iron parts
